Power Connect 100 kVA Prime Power Diesel Generator — PCS-100

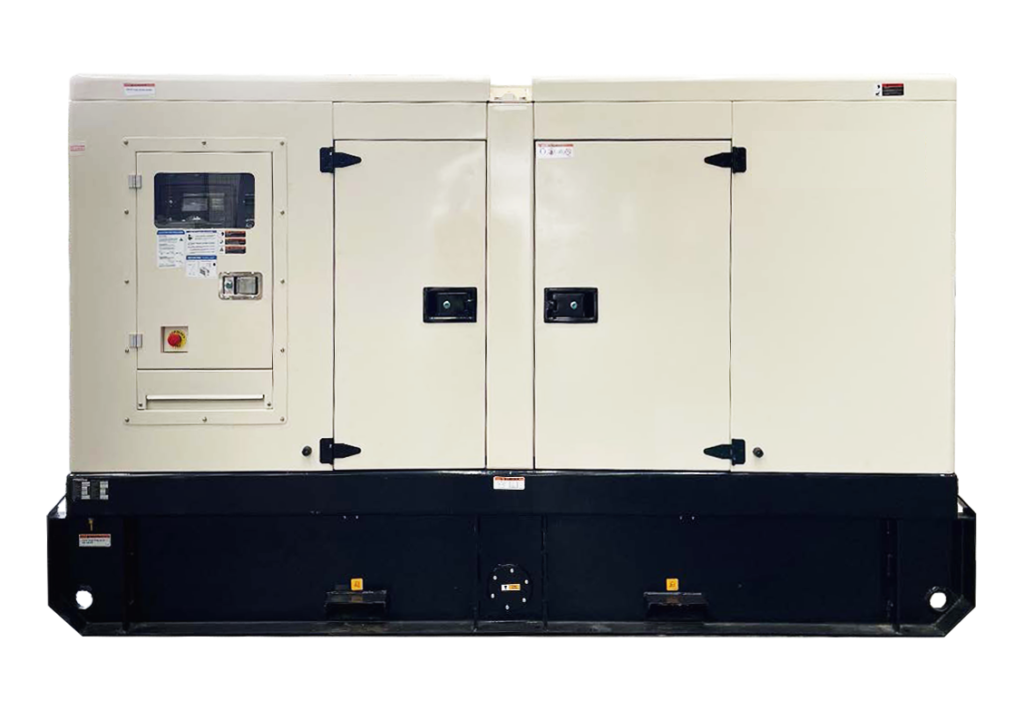

The Power Connect PCS-100 is a heavy-duty sound-proof canopy diesel generator delivering reliable prime power for remote sites, mining operations, construction camps, and commercial facilities.

Powered by a Cummins 6BT5.9G2 engine coupled to a Stamford brushless alternator, the PCS-100 is built for continuous operation in demanding Australian conditions.

Power Output
- Prime Power: 100 kVA / 80 kW
- Standby Power: 110 kVA / 88 kW
- Voltage / Current: 415V / 139A
- Frequency: 50 Hz @ 1500 rpm, 3-phase

Engine
- Make / Model: Cummins 6BT5.9G2
- Displacement: 5.9L, 6 cylinder
- Intake: Turbocharged, air-to-air charge cooled
- Cooling: Water cooled
- Oil Capacity: 14.2L

Alternator
- Brand: Stamford UCI274C
- Excitation: Brushless, self-excited
- Windings: 100% copper
- Insulation Class: H
- Voltage Regulation: ±1.0%

Fuel Consumption (50 Hz)
- 25% load: 7.0 L/hr
- 50% load: 11.0 L/hr
- 75% load: 17.0 L/hr
- 100% load: 22.0 L/hr

General
- Fuel Tank: 540L (approx. 25 hours running at full load)
- Dry Weight: 2,104 kg
- Dimensions (L×W×H): 2,970 × 1,190 × 1,809 mm
- Sound Level: 70.1 dBA @ 7m
- Control System: PLC-7420 microprocessor with LCD display
- Circuit Breaker: ABB 160A
- Compliance: CE, ISO8528-5:2005, AS3000-2018, AS3010-2017

Standard Inclusions
- Powder coated sound-proof canopy
- 540L base fuel tank with drain points and breather valve
- Steel base frame with fork slots
- Vibration isolators
- 2 × 12V/72AH sealed maintenance-free batteries
- Lockable battery isolator switch
- ATS receptacle and remote run connector
- Emergency stop switch
- Operation manual and specifications

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
