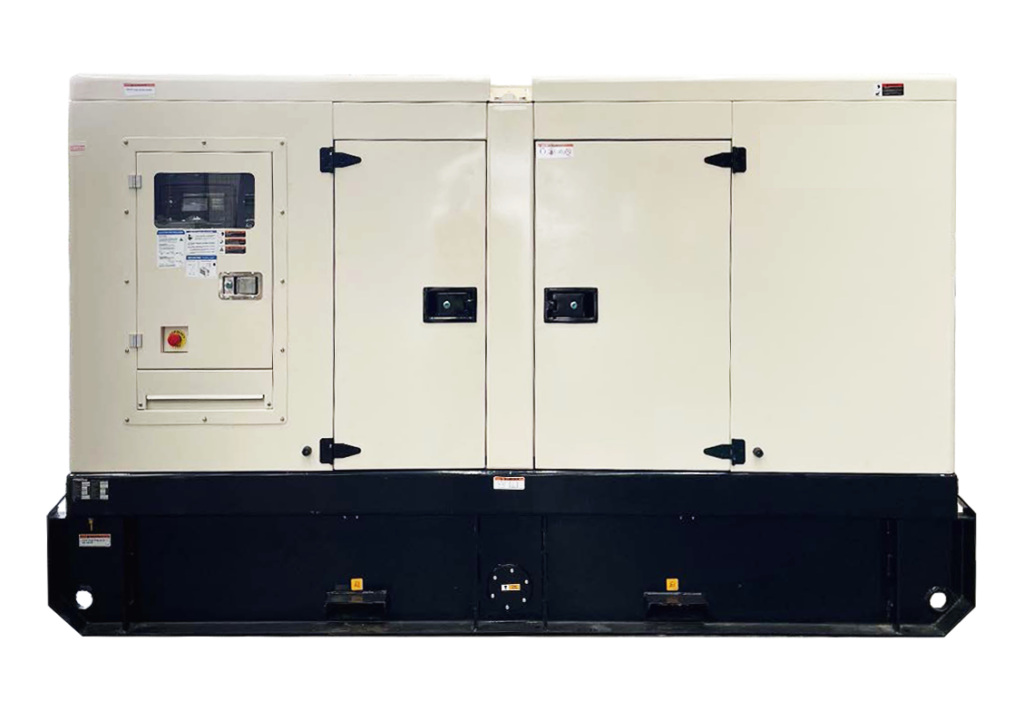

Power Connect 125 kVA Silent Diesel Generator — PCS-125

The Power Connect PCS-125 is a heavy-duty sound-proof canopy diesel generator delivering reliable prime power for mining operations, remote infrastructure, and construction projects.

Powered by a Cummins 6BTAA5.9-G2 engine coupled to a Stamford brushless alternator with DEIF AGC-150 controller.

Power Output
- Prime Power: 100 kW / 125 kVA
- Standby Power: 110 kW / 137.5 kVA
- Rated Current: 174 A
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm

Engine
- Make / Model: Cummins 6BTAA5.9-G2
- Configuration: 6 Cylinder
- Displacement: 5.9 L
- Bore x Stroke: 102 x 120 mm
- Compression Ratio: 17.3:1
- Cooling: Radiator cooled, water cooled
- Intake: Turbocharged, direct injection
- Governor: Electronic
- Oil Capacity: 16 L

Alternator
- Brand: Stamford UCI274ES14
- Prime Output: 100 kW / 125 kVA
- Excitation: Brushless
- Insulation Class: H
- Protection: IP23
- Wiring: 3P4W

Dimensions & Weight
- L x W x H: 2,800 x 1,050 x 1,750 mm
- Dry Weight: 1,450 kg
- Fuel Tank: 160 L

Controller: DEIF AGC-150

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
