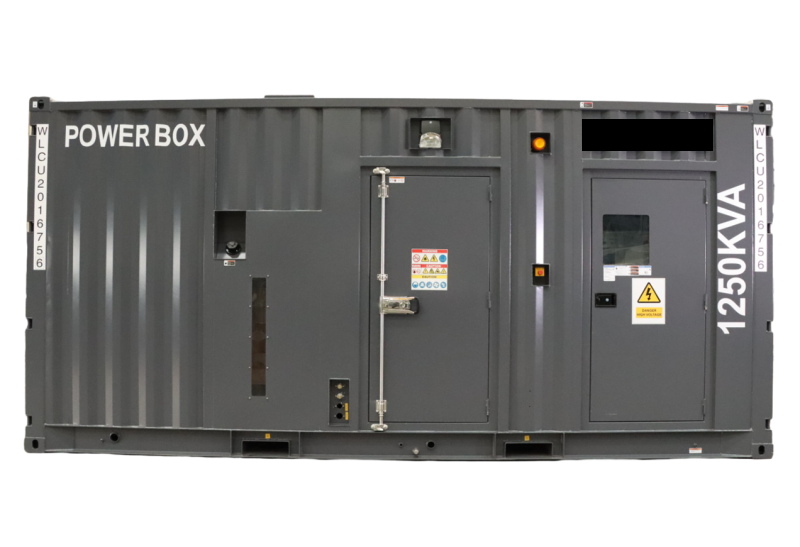

Power Connect 1250 kVA Silent Diesel Generator — PCS-1250

The Power Connect PCS-1250 is a heavy-duty industrial sound-proof canopy diesel generator delivering large-scale prime power for major mining operations, remote infrastructure, and critical industrial facilities.

Powered by a Cummins KTA50-G3 V16 engine coupled to a Stamford S7L1D-F41 alternator with DEIF AGC-150 controller.

Power Output
- Prime Power: 1,000 kW / 1,250 kVA
- Standby Power: 1,100 kW / 1,375 kVA
- Rated Current: 1,732 A
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm
- Power Factor: 0.8

Engine
- Make / Model: Cummins KTA50-G3
- Configuration: 16 Cylinder V-Type
- Displacement: 50.3 L
- Bore x Stroke: 159 x 159 mm
- Compression Ratio: 13.9:1
- Prime Power: 1,100 kW
- Standby Power: 1,200 kW

Alternator
- Brand: Stamford S7L1D-F41
- Prime Output: 1,250 kVA
- Standby Output: 1,375 kVA
- Insulation Class: H
- Protection: IP23
- Wiring: 3P4W

Dimensions & Weight
- L x W x H: 5,800 x 2,200 x 2,600 mm
- Dry Weight: 12,500 kg
- Fuel Tank: 1,200 L

Controller: DEIF AGC-150

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
