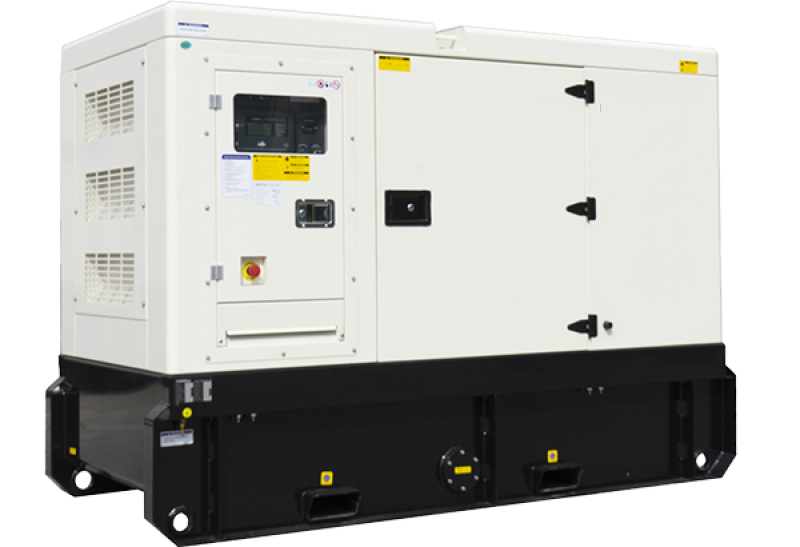

Power Connect 20 kVA Silent Diesel Generator — PCS-20

The Power Connect PCS-20 is a compact sound-proof canopy diesel generator delivering reliable prime power for small remote sites, construction, and agricultural applications.

Powered by a Cummins 4B3.9-G2 engine coupled to a Stamford brushless alternator with Deep Sea DSE6120 MKIII controller.

Power Output
- Prime Power: 16 kW / 20 kVA
- Standby Power: 17.6 kW / 22 kVA
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm

Engine
- Make / Model: Cummins 4B3.9-G2
- Cooling: Water cooled, radiator
- Intake: Naturally aspirated
- Governor: Electronic

Alternator
- Brand: Stamford S0L2-G1
- Excitation: Brushless
- Insulation Class: H
- Protection: IP23

Controller: Deep Sea DSE6120 MKIII

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
