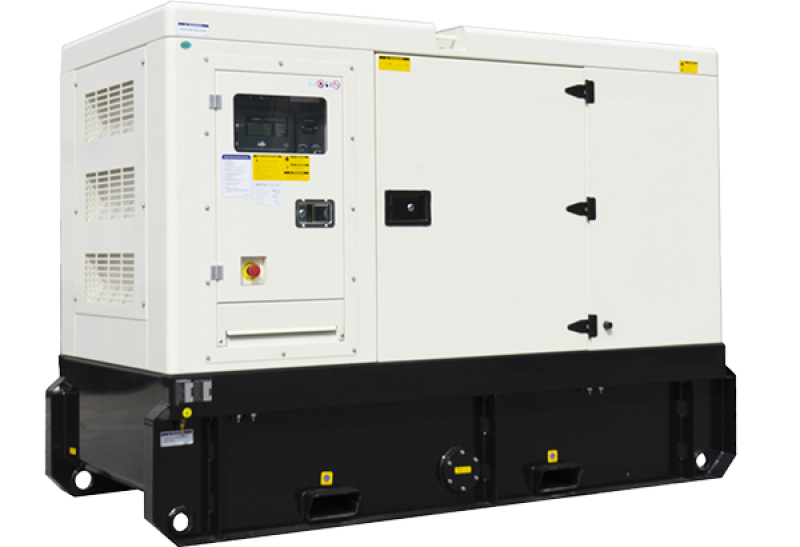

Power Connect 200 kVA Silent Diesel Generator — PCS-200

The Power Connect PCS-200 is a heavy-duty sound-proof canopy diesel generator delivering reliable prime power for mining operations, remote infrastructure, and large construction projects.

Powered by a Cummins 6CTAA8.3-G2 engine coupled to a Stamford brushless alternator with DEIF AGC-150 controller.

Power Output
- Prime Power: 160 kW / 200 kVA
- Standby Power: 176 kW / 220 kVA
- Rated Current: 278 A
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm

Engine
- Make / Model: Cummins 6CTAA8.3-G2
- Configuration: 6 Cylinder
- Displacement: 8.3 L
- Bore x Stroke: 114 x 135 mm
- Compression Ratio: 18:1
- Cooling: Radiator cooled, water cooled
- Intake: Turbocharged, direct injection
- Governor: Electronic
- Oil Capacity: 24 L

Alternator
- Brand: Stamford UCI274H14
- Prime Output: 160 kW / 200 kVA
- Excitation: Brushless
- Insulation Class: H
- Protection: IP23
- Wiring: 3P4W

Dimensions & Weight
- L x W x H: 3,200 x 1,200 x 1,950 mm
- Dry Weight: 2,050 kg
- Fuel Tank: 240 L

Controller: DEIF AGC-150

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
