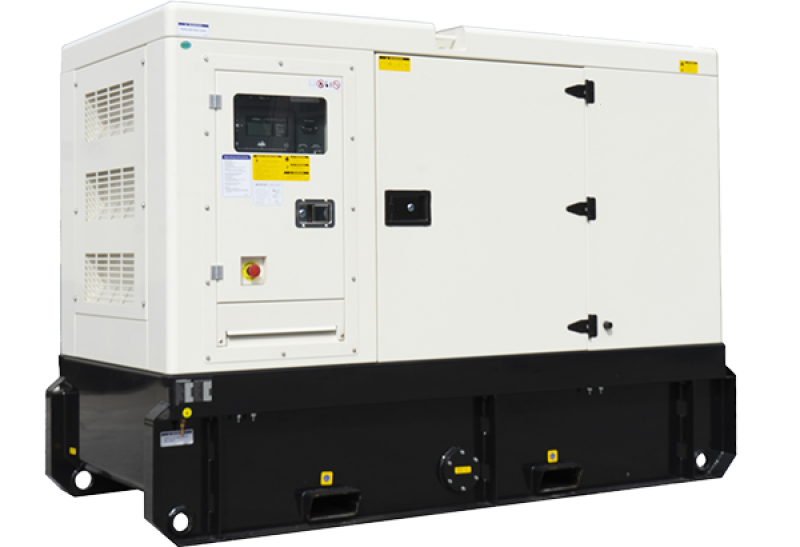

Power Connect 300 kVA Silent Diesel Generator — PCS-300

The Power Connect PCS-300 is an industrial-grade sound-proof canopy diesel generator delivering reliable prime power for mining operations, remote infrastructure, and major construction projects.

Powered by a Cummins 6LTAA9.5-G1 engine coupled to a Stamford HCI444D1 alternator with DEIF AGC-150 controller.

Power Output
- Prime Power: 240 kW / 300 kVA
- Standby Power: 264 kW / 330 kVA
- Rated Current: 417 A
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm
- Power Factor: 0.8

Engine
- Make / Model: Cummins 6LTAA9.5-G1
- Configuration: 6 Cylinder
- Displacement: 9.5 L
- Bore x Stroke: 116.5 x 148 mm
- Compression Ratio: 16.6:1
- Prime Power: 290 kW
- Standby Power: 320 kW

Alternator
- Brand: Stamford HCI444D1
- Prime Output: 240 kW / 300 kVA
- Standby Output: 264 kW / 330 kVA
- Insulation Class: H
- Protection: IP23
- Wiring: 3P4W

Dimensions & Weight
- L x W x H: 3,600 x 1,400 x 2,150 mm
- Dry Weight: 3,350 kg
- Fuel Tank: 300 L

Controller: DEIF AGC-150

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
