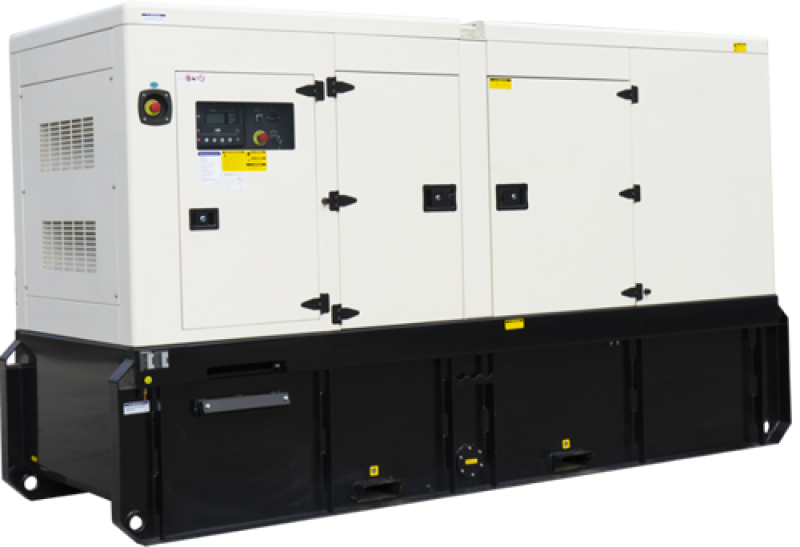

Power Connect 500 kVA Silent Diesel Generator — PCS-500

The Power Connect PCS-500 is a large-scale industrial sound-proof canopy diesel generator delivering reliable prime power for major mining operations, remote infrastructure, and large industrial facilities.

Powered by a Cummins QSZ13-G3 engine coupled to a Stamford S5L1D-C41 alternator with DEIF AGC-150 controller.

Power Output
- Prime Power: 400 kW / 500 kVA
- Standby Power: 440 kW / 550 kVA
- Rated Current: 696 A
- Voltage: 240 / 415 V, 3-Phase
- Frequency: 50 Hz @ 1500 rpm
- Power Factor: 0.8

Engine
- Make / Model: Cummins QSZ13-G3
- Configuration: 6 Cylinder
- Displacement: 9.5 L
- Bore x Stroke: 130 x 163 mm
- Compression Ratio: 17:1
- Prime Power: 450 kW
- Standby Power: 470 kW

Alternator
- Brand: Stamford S5L1D-C41
- Prime Output: 400 kW / 500 kVA
- Standby Output: 440 kW / 550 kVA
- Insulation Class: H
- Protection: IP23
- Wiring: 3P4W

Dimensions & Weight
- L x W x H: 4,200 x 1,600 x 2,350 mm
- Dry Weight: 4,050 kg
- Fuel Tank: 500 L

Controller: DEIF AGC-150

Delivered nationally. Installation and commissioning support available on request. Contact us for a freight quote to your site.
